Pin Connection

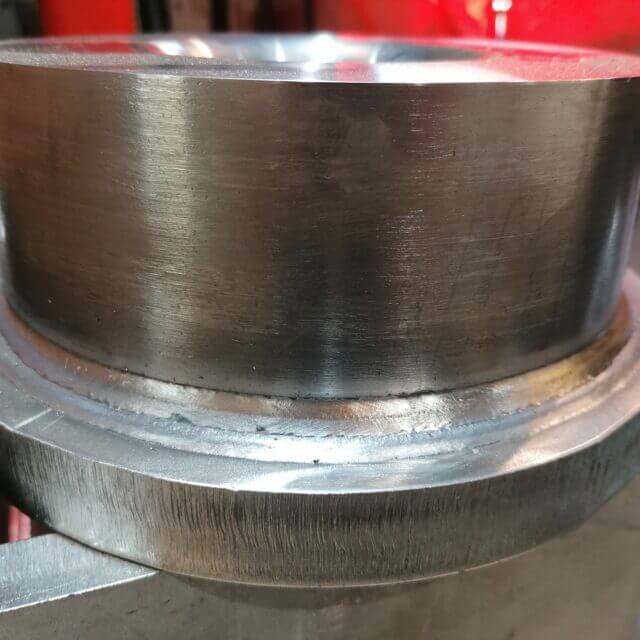

Brief Description

Machined boss, plasma cut plate

Material Grade & Thickness

20mm thk plate, 60mm tk boss in 316 Stainless steel

Weld Type

Multi run Fillet weld

Execution Class

EXC 2

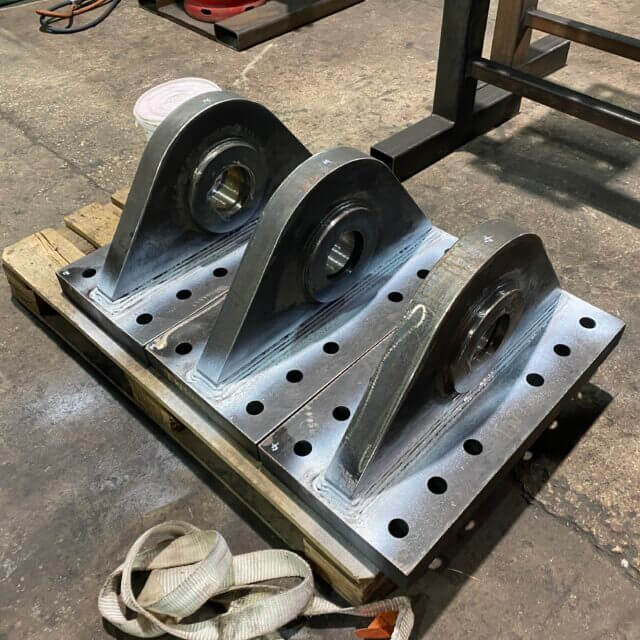

Brief Description

Plasma cut plates c/w drilled holes, welded lug

Material Grade & Thickness

S355 60mm thk

Weld Type

Multi run Fillet weld

Execution Class

EXC 3

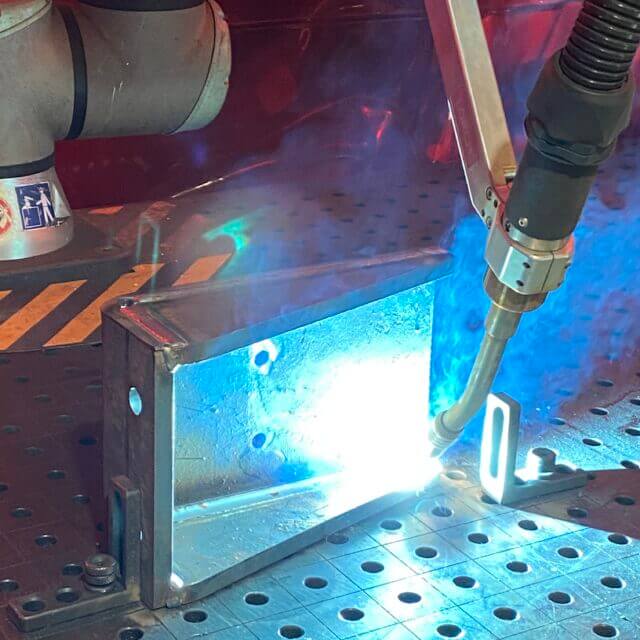

Brief Description

Fabricated rectangular hollow section, welded by seam tracking weld machine

Material Grade & Thickness

SS 316 15mm thk

Weld Type

Semi automated full pen butt weld

Execution Class

EXC 2
